MHD7021DX 2560x1600 lvds eDP DP AD card LCD monitor controller board

FOB Reference Price:Get Latest Price
$1.00 - $55.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
MHD7021DX V2.0
Type:
TFT
Product Name:
LCD controller board support 2560*1600,1920*1080 panel with lvds,eDP
Panel interfaces:
10/8/6 bit LVDS ,DP TX 2.7G / 5.4G (optinal) and eDP 2.7G 4-Lan
Backlight:
LED
LCD resolution:
Up to 2560*1600
Signal interface:
D-SUB(VGA)/DVI-D/DP/HDM 1.4/DP TX 2.7G/ eDP 2.7G 4-Lan/LVDS
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
pressure proof plastic bag and carton
Port
Hongkong/Shenzhen
Product Introduction

GENERAL DESCRIPTION

This product used high resolution IC system ,10/8/6 bit LVDS ,DP TX 2.7G / 5.4G (optinal) and eDP 2.7G 4-Lan,Max support 2560*1600 resolution screen,Main used Full HD display, monitor display and other commercial display and so on,support DP、HDM 、DVI、VGA input.
Support external power +24V input
Support 25W LED backlight output
Support picture in picture function(Max support 1920X1080)
0.5W. standby power consumption <0.5W
Support Audio loudspeaker

Item
Description
Inputs port
D-SUB(VGA)/DVI-D/DP/HDM 1.4
Output signal
DP TX 2.7G/ eDP 2.7G 4-Lan
10/8/6 bit Dual/Quard/Single port LVDS
MAX:2560X1600
Power input
24V/12V(+/-0.5V) 4pin DCsocket/DC socket/4Pin 2.54socket
LEDbacklight outputs
<80V,25W
Audio output power
3WX2
power management
standby consumption<0.5W
If you need more information about the item, pls contact me , my skype is : RobinClientop
Related Pictures
Packing&shipping

1.Payment term:

 L/C,D/P,D/A,Western,Moneygram,the usual payment is paypal.T.T 30% payment before production,the 70% balance should be paid shipment after inspection.

2.Packing:

12 months warranty .lifetime maintainance.ROHS, CE & FCC certificates in e-file format are available.1pc, sample order are welcome for your evaluation.Pressure proof plastic bag and carton.

3.Shipping:

 some products will be delivered by DHL.or tell us what do you want to use the mode of transportation.

Main Products

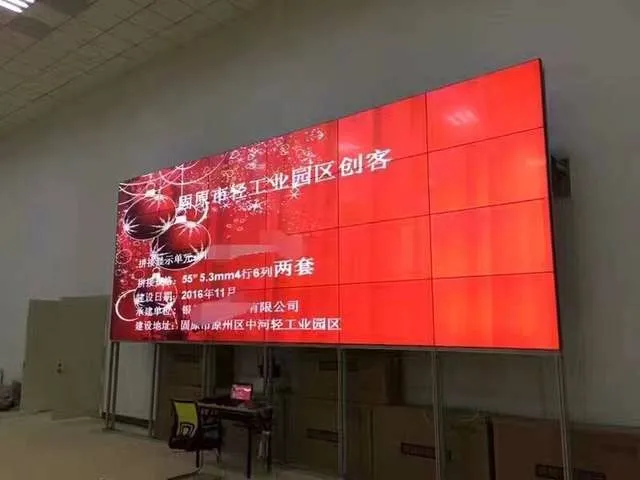

Video wall

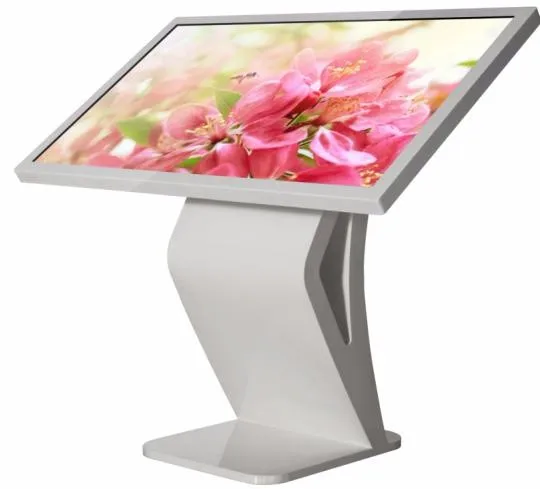

K style touch screen kiosk
